Key Features
Serial Monitor & Data Logging
Full-featured text terminal for serial communication. View incoming data in real-time with timestamps, save logs to files, and manage buffer size for efficient monitoring.
Real-Time Plotting
Visualize serial data in real-time with smooth, responsive plots. Configurable sample size and update rates for optimal performance.
FFT Analysis
Built-in Fast Fourier Transform visualization for frequency domain analysis. Perfect for audio and signal processing applications.
Wavelet Decomposition
Advanced wavelet transform analysis with multiple decomposition levels. Analyze signal components at different frequency scales.
EMD Analysis
Empirical Mode Decomposition for complex signal analysis. Extract intrinsic mode functions from non-linear and non-stationary data.
Auto Port Detection
Automatically detects available serial ports. Easy connection management with clear status indicators.
Screenshots

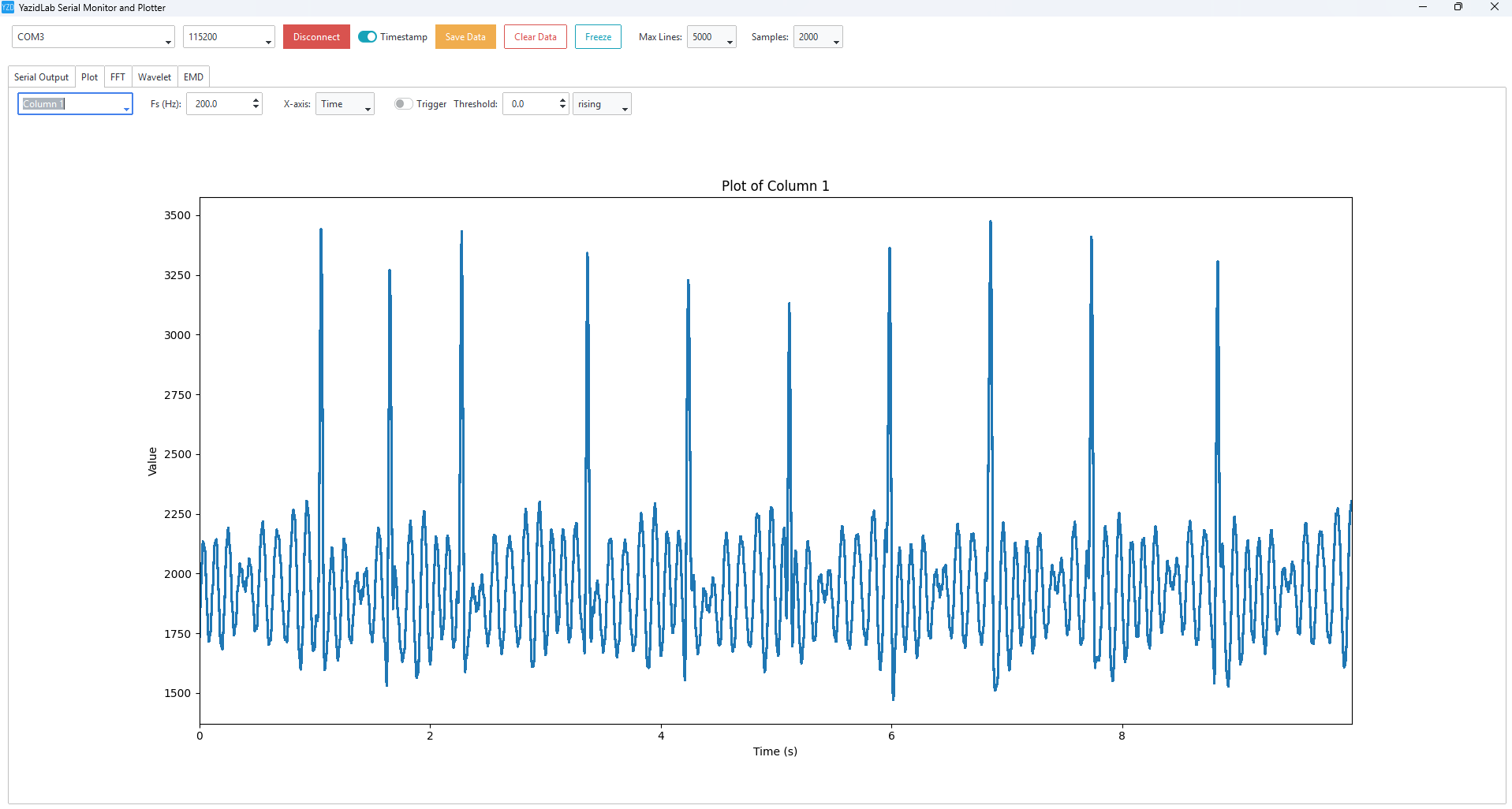

Real-Time Plot View

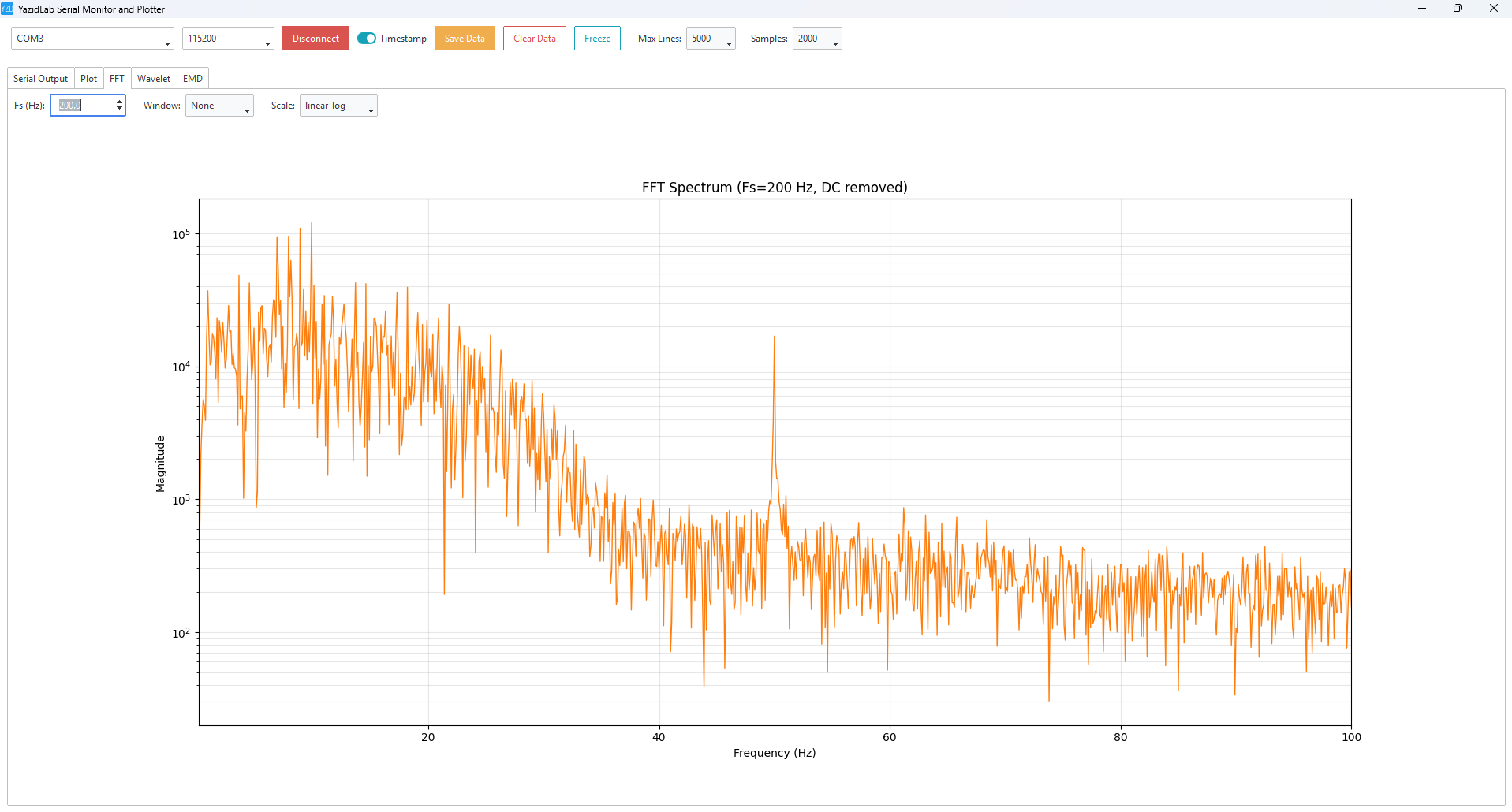

FFT Analysis View

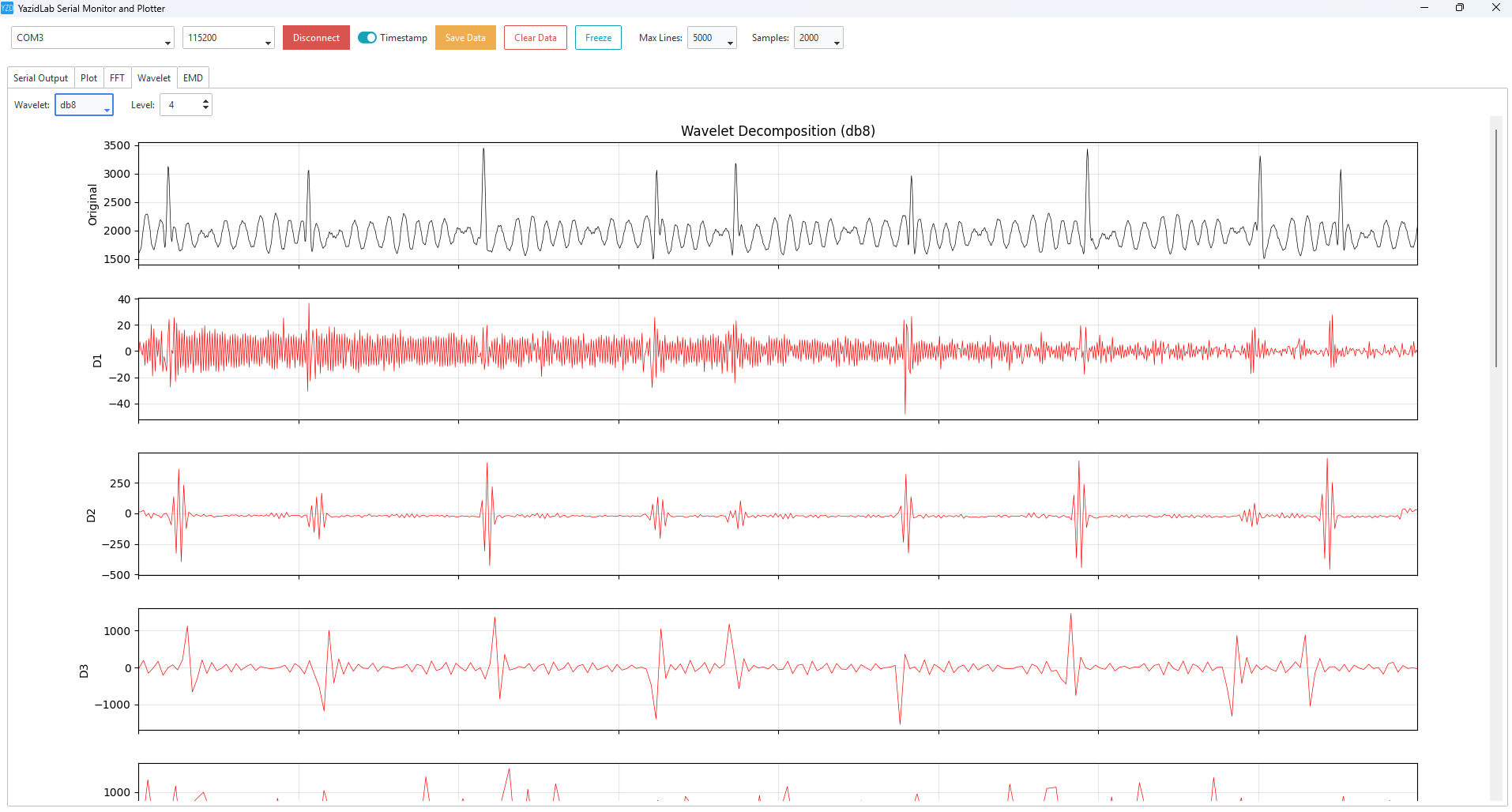

Wavelet Decomposition

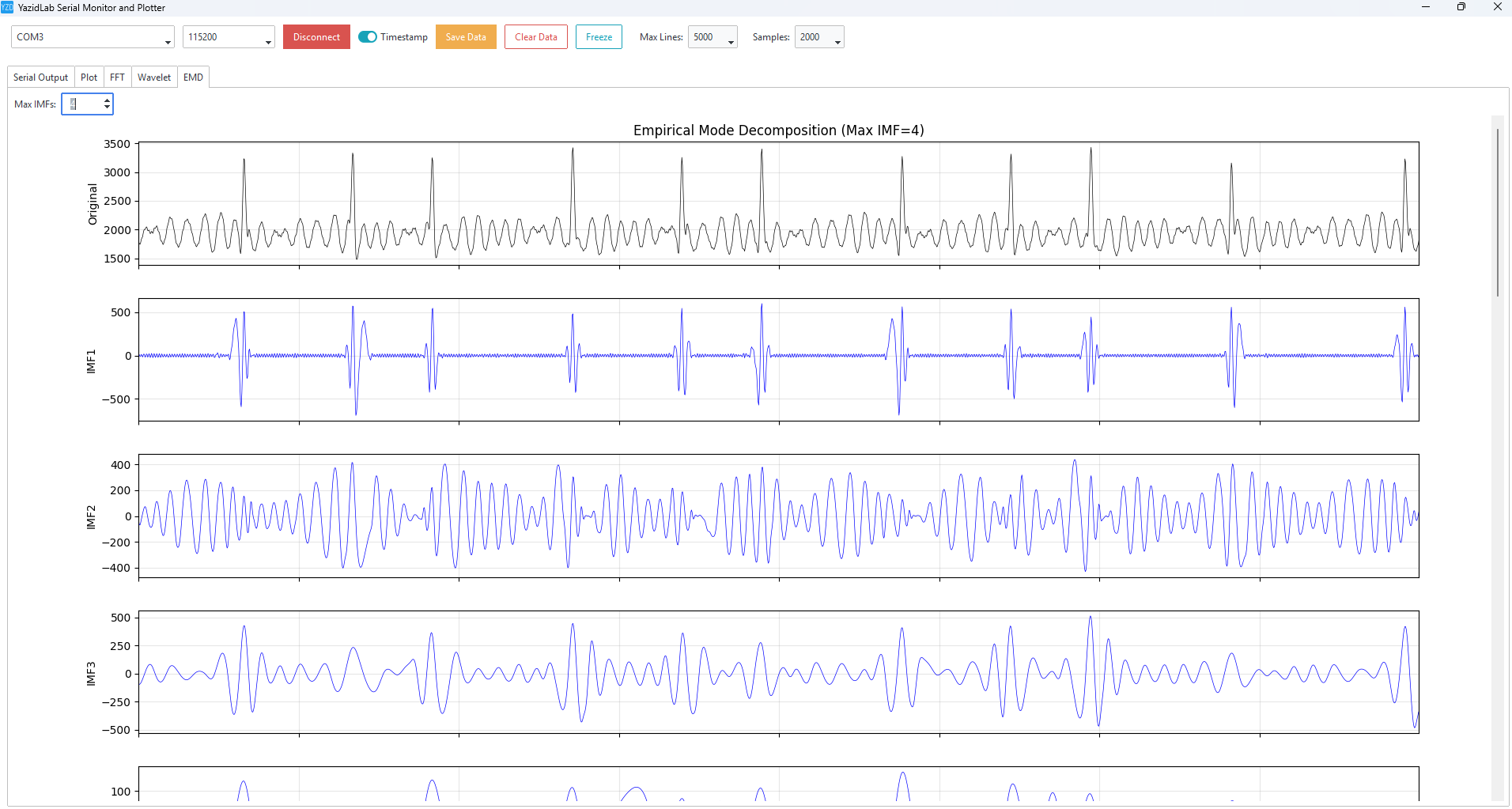

EMD Analysis
System Requirements
- Windows 10 or Windows 11 (64-bit)
- 4 GB RAM (8 GB recommended for EMD analysis)
- 300 MB available disk space
- USB port for serial device connection
- Display resolution: 1280x720 minimum (1920x1080 recommended)
Installation Instructions
- Download the installer using the button above
- Run SerialMon-Setup-1.0.0.exe
- Follow the installation wizard
- Launch SerialMon from Start Menu or Desktop shortcut
- Connect your serial device and start monitoring!
